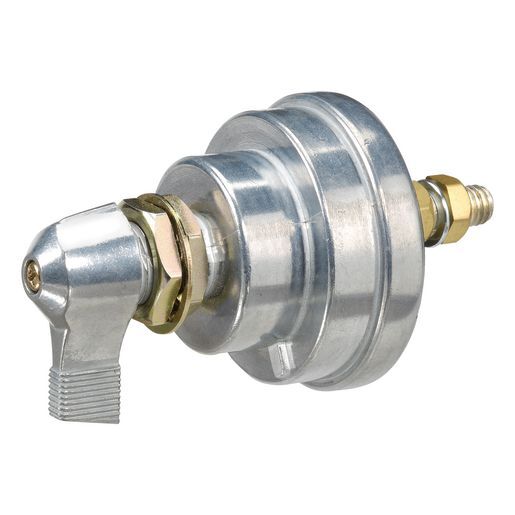

Master disconnect switch with provision for use with alternator/generator field circuit. Mounting opening 19mm dia. Large Terminals: 1000A at 12V for 20 seconds 500A at 24V for 20 seconds 180A at 12V continuous load max. 90A at 24V continuous load max. Small Terminals: 20A at 12V continuous load max. 10A at 24V continuous load max. Specifications: CURRENT DRAW: Large Terminals 1000A 12V for 20 secs 500A 24V for 20 secs 180A 12V continuous load max 90A 24V continuous load max Small Terminals 20A 12V continuous load max 10A 24V continuous load max Size: 106 x 69mm
(61070)
SKU
61070
Barcode #
9.31446E+12
Brand
NARVA
Shipping Weight
0.1000kg
Shipping Width
0.120m
Shipping Height
0.050m
Shipping Length
0.150m
