Switch Push But Off/Mom On 12V 60Amp Protective Cap
SKU:SW3030
RRP $53.85
$39.49
SAVE $14.36 (27%)
Not Available In Store
Calculate Shipping

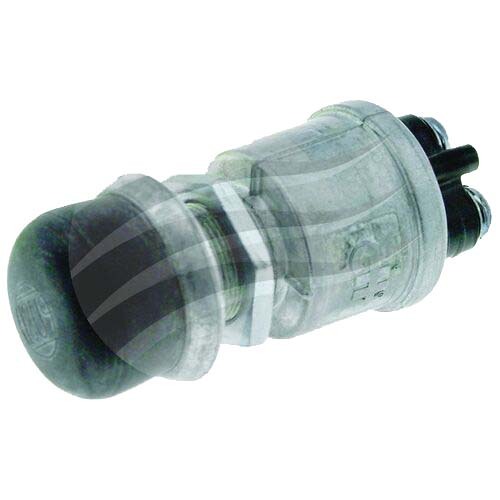

Cole Hersee Push Button Switch Off/Mom On 12/24 Volt 60amp.
Cole Hersee Part No. 90030
2 Position - Off/Mom On- Single Pole - Single Throw- Protective Weather/Dust proof Rubber Cap Actuator.
Maximum Load: 60amp at 12 Volt- 30amp at 24 Volt.
On with actuator pressed- spring return to Off position.
Silver Contacts.
2 Screw terminals.
Mounting Stem: 16.00mm long with a 5/8"-32 thread and 15.87mm diameter.-Suits panel thickness 1.52mm to 6.35mm.-1 year Warranty.
Dimensions:-50.29mm x 28.45mm.
Specifications:
Voltage: 12 - 24 VOLT
Amps: 60
Function: OFF / MOM ON
Number of Terminals: 2
Number of Postions: 2
Contact Configuration: SPST
Cole Hersee Part No. 90030
2 Position - Off/Mom On- Single Pole - Single Throw- Protective Weather/Dust proof Rubber Cap Actuator.
Maximum Load: 60amp at 12 Volt- 30amp at 24 Volt.
On with actuator pressed- spring return to Off position.
Silver Contacts.
2 Screw terminals.
Mounting Stem: 16.00mm long with a 5/8"-32 thread and 15.87mm diameter.-Suits panel thickness 1.52mm to 6.35mm.-1 year Warranty.
Dimensions:-50.29mm x 28.45mm.
Specifications:
Voltage: 12 - 24 VOLT
Amps: 60
Function: OFF / MOM ON
Number of Terminals: 2
Number of Postions: 2
Contact Configuration: SPST
(SW3030)
| SKU | SW3030 |
| Barcode # | 9310754787562 |
| Brand | Cole Hersee |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.060m |
| Shipping Length | 0.100m |
