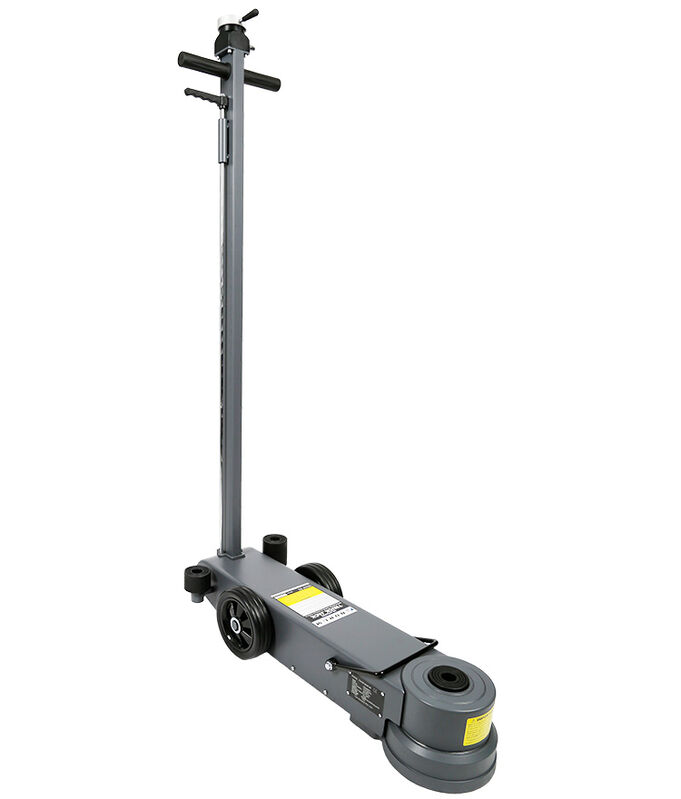

Truck Jack Air Actuated 3-Stage 50,000Kg

3 Stage Air Actuated Jack is designed for top industrial performance, reliability and for a wide variety of uses. These Jacks are carefully constructed from the highest grades of rugged steel. The super strong hydraulic pump utilises wear-resistant American Made XTP double sealing ring technology.
Versatility To Get The Job Done
Use these workhorses with a 145–175psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. With several lifting options as well as included saddle adaptors…the wide range of Commercial Jacks will suit most desired applications from agriculture to mining, earth-moving to passenger transport as well as aviation and military.
Powerful, Heavy-Duty Operation
The 3 Stage Air Actuated Jack quickly and easily manages a hefty 50,000kg in the first stage lift position, 25,000kg at the higher 2nd stage extension and 10,000kg at its highest 3rd extension. This Air Actuated Commercial Jack is designed for heavy duty commercial use and features a long reach “T" handle and large rubber wheels for smooth manoeuvring around the workshop. Includes a built-in safety valve to prevent overloading and keep the operator safe. Additional safety feature includes a Self-Return lowering and lifting switch to ensure complete control during operation. With a low-profile minimum height of 160mm this jack is ideal for low ground-clearance vehicles and a high lift maximum of 472mm (includes additional lifting saddles), this Air Actuated Jack is a very versatile heavy-lifter suitable for most workshops.
Features:
Seals made in America
Double Sealing Function using XTP Industry Sealing
Telescopic air actuation lift (air-hydraulic pump)
Long T-handle lets you easily position your jack under vehicle
Self-Returning Lowering and Lifting Switch
Internal and External Cylinders hard chromed
High manoeuvrability & deep reach under vehicles
2 extension adaptors / saddle plates
Large rubber wheels
All adaptors can be properly stored for transport on each side of the jack
Specifications:
First Stage: 50,000kg Safe Working Capacity
Second Stage: 25,000kg Safe Working Capacity
Third Stage: 10,000kg Safe Working Capacity
First Stage Hydraulic Lift: 62mm
Second Stage Hydraulic Lift: 61mm
Third Stage Hydraulic Lift: 69mm
Minimum Height: 160mm
Maximum Height: 472mm
Adaptors: 45mm and 75mm
Handle Length: 1380mm
Operating Air Pressure: 145-175psi
Chassis: 825mm x 282mm x160mm
Weight: 61kg
