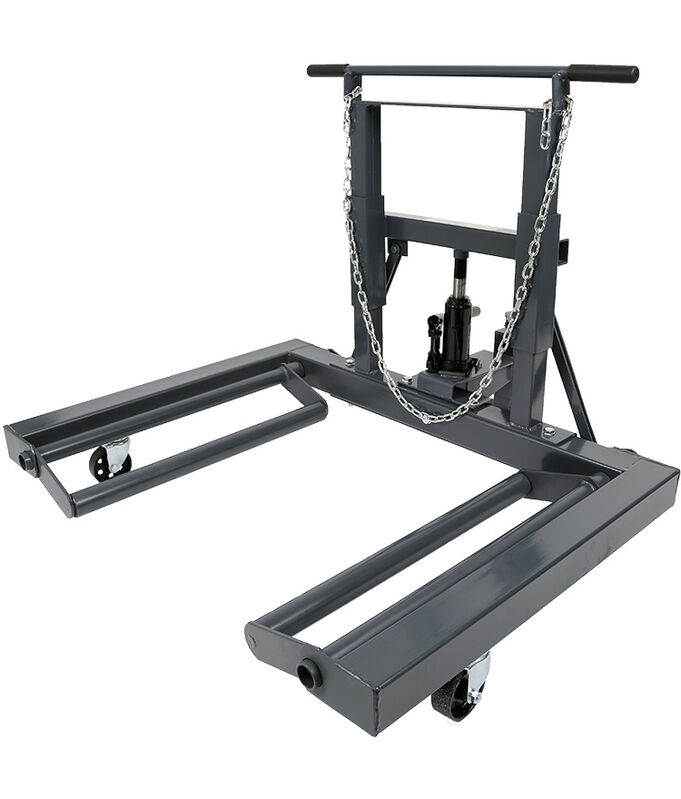

Truck Wheel Dolly 750Kg Tradequip

This Borum Industrial Hydraulic Truck Wheel Lifter is designed for the removal, installation and transportation of single, tandem and duplex truck tyre and wheel combinations. Hydraulically activated lift arms handle wheel assemblies up to 400mm frame with tilt feature that aligns lift arms with spindle angle. Three ball bearing mounted castor wheels provide positive stability and easy maneuverability. Bearing mounted lift arms easily rotate vehicle rim for bolt pattern alignment.
Features:
Hydraulic system actuated to provide smooth, positive power for the removal and installation of single, tandem and duplex tyres and wheels
Heavy duty steel frame tilts to allow precise positioning of truck tyres.
Supports heavy commercial rims and tyres
Rolls easily on quality steel bearing castors
Includes heavy duty chain to keep load secure
Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
Paint finish is oil, grease and dirt-resistant for easy cleanup
Specifications:
Safe Working Capacity: 750kg
Max. Tyre Diameter: 1300mm
Lift Arm Length: 660mm
Lift Arm Spread: 533mm (min) to 635mm (max)
Lifting Range: 60 - 275mm
Tilt Range: -2.5 to 10 degrees
Hydraulic Ram Travel: 100mm
Dimensions: 787(L) x 1092(W) x 895(H)mm
Weight: 70kg
