No.6300C - Twin Cam Ford/Mazda Engine Timing Tool

RRP $127.05

$80.85

SAVE $46.20 (36%)

Not Available In Store

Calculate Shipping

It is designed for the Ford Duratec 1.25 to 2.0 16V petrol engines in both belt and chain drive. The set consists of a camshaft setting and TDC location pins.

Applications:

Ford 1.25, 1.4, 1.6, 1.7, 1.8 & 2.0 twin cam 16v duratec petrol engines (belt & chain) in: Fiesta/Courier, Fusion, Puma, Focus/C-Max, Mondeo, Cougar, S-Max, Galaxy, Tourneo Connect, Transit Connect.

Model/Engine Code	Part A	Part B	Part C	Part D
Ford (Duratec)
Fiesta / Courier (96 3 /97) Automatic Tensioner 1.25 DHA / DHB / DHC / DHD (Belt)		*	*
Fiesta / Courier (4/97-02) Semi-automatic Tensioner 1.25 DHA / DHB / DHC / DHD / DHE / DHF / DHG (Belt) 1.4 FHA / FHE (Belt) 1.6 L1T / L1V (Belt)		*	*	*
Fiesta / Fusion (02-08) 1.25 F8JA / F8JB / FUJA / M7JA / M7JB (Belt) 1.4 FXJA / FXJB (Belt), 1.6 FYJA / FYJB (Belt)			*	*
Fiesta 2.0 ST150 (04-08) N4JB (Chain)		*	*
Puma (97-02) 1.4 FHD / FHF (Belt), 1.6 L1W (Belt), 1.7 MHA / MHB (Belt)		*	*
Focus / C-Max (98-08) 1.4 FXDA / FXDB / FXDC / FXDD / ASDA / ASDB / FXJA (Belt) 1.6 FYDA / FYDB / FYDC / FYDD / HWDA / HWDB (Belt)			*	*
Focus (98-05) 1.8 EYDB / EYDC / EYDD / EYDE / EYDF / EYDG / EYDI / EYDJ (Belt) 2.0 EDDB / EDDC / EDDD / EDDF (Belt)	*		*
Focus 2.0RS / ST170 (01-05) HMDA / ALDA (Belt)	*		*	RS
Focus / C-Max (03-08) 1.8 QQDA / QQDB / QQDC / CSDA / CSDB (Chain) 2.0 AODA / ADOB (Chain)		*	*
Ford (Duratec)
Mondeo (93-98) 1.6 L1F / L1J (Belt), 1.8 RKA / RKB (Belt), 2.0 NGA (Belt)			*
Mondeo (97-00) 1.6 L1L / L1N / L1Q (Belt), 1.8 RKF / RKH / RKJ / RKK (Belt) 2.0 NGB / NGC / NGD (Belt)	*		*
Mondeo (00-07) 1.8 CCBB / CGBA / CGBB / CHBA / CHBB (CHAIN) 2.0 CJBA / CJBB (Chain)		*	*
Cougar (98-01) 2.0 EDBA / EDBB / EDBC / EDBD (Belt)	*		*
S-Max / Galaxy (06-08) 2.0 AOWA (Chain)			*	*
Tourneo Connect / Transit Connect (02-06) 1.8 EYPA / EYPC (Belt)	*		*
Mazda 21 (95-00) 1.25 DHA (Belt)		*	*
2 (02-07) 1.25 FUJA / FUJB (Belt) 1.4 FXJA / FXJB (Belt) 1.6 FYJA (Belt)			*	*
3 (03-06) 6 (02-07) 1.8 - L8 (Chain) 2.0 LF (Chain)		*	*
Tribute (01-04) 2.0 YF (Belt)	*		*

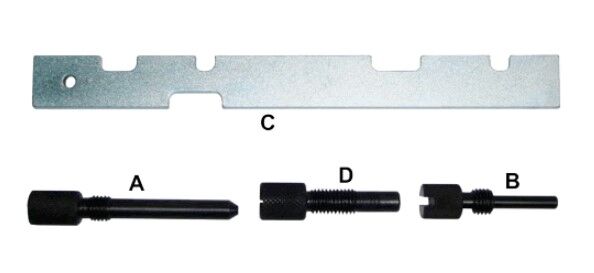

Contents:

Item	OEM	Description
A	21-163, 303-620	Crank TDC Location Pin
B	21-210, 303-507	Crank TDC Location Pin
C	21-162B, 303-376, 303-376B	Camshaft Setting Plate
D	21-159, 303-748	Crank Holding Tool (+ Crank Pulley Bolt Tightening)
