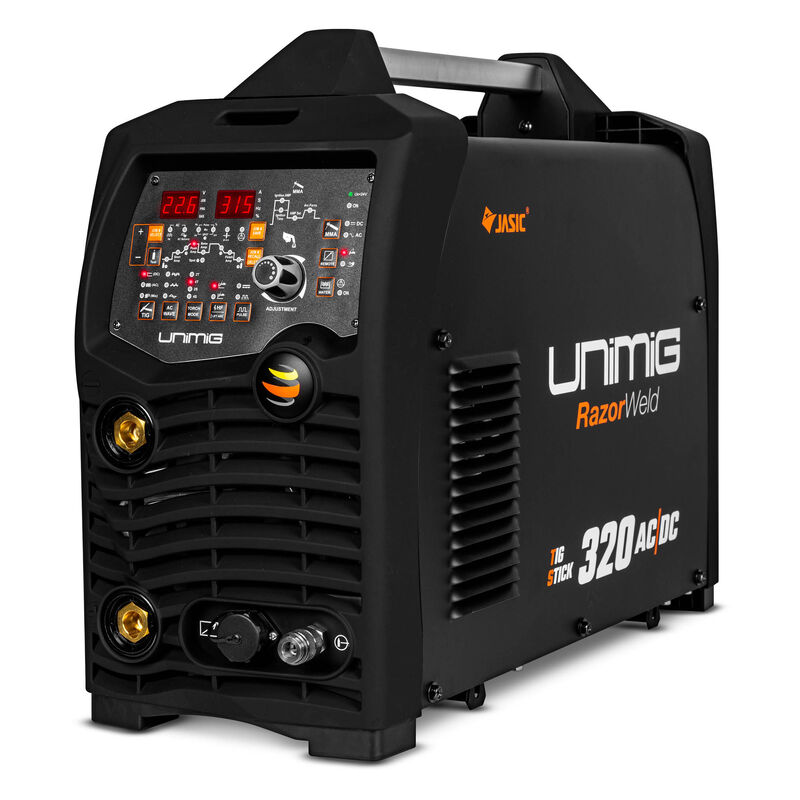

Unimig 320 ACDC

The RAZOR 320 AC/DC gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This Three-Phase machine features Square, Trapezoidal and Sine AC output waveforms, as well as MIX ARC AC/DC functions.
The RAZOR 320 AC/DC is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations.
The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZOR 320 AC/DC, offering up to 30 percent better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control and Water Cooler can also be plugged into the machine for even more versatility and power.
MACHINE SPECIFICATIONS:
PRIMARY INPUT VOLTAGE
415V Three Phase
SUPPLY PLUG
No plug supplied (20 AMP Recommended)
RATED INPUT POWER (kVA)
9.0
Ieff (A)
10.0
RATED OUTPUT
5-315A
NO LOAD VOLTAGE (V)
9-73
PROTECTION CLASS
IP21S
INSULATION CLASS
F
POWER FACTOR
0.7
MINIMUM GENERATOR (kVA)
10.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1, AS/NZ60974-10
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
WARRANTY (Years)
3TIG SPECIFICATIONS
TIG FUNCTION TYPE
AC/DC HF TIG and AC/DC Pulse
TIG WELDING CURRENT RANGE
5-315A
TIG DUTY CYCLE at 40 degC
30 percent at 315A
TIG WELDING THICKNESS RANGE
1-16mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
10-270A
STICK DUTY CYCLE at 40 degC
30 percent at 270A
STICK ELECTRODE RANGE
2.5-4.0mm
STICK WELDING THICKNESS RANGE
2-16mm
ARC FORCE
0-40
SIZE and WEIGHT
DIMENSIONS (mm)
566x223.5x405mm
WEIGHT (kg)
25.5kg
MACHINE FEATURES
VRD
Yes
FOOT CONTROL CONNECTION
UTJRFC-4
CRATER CURRENT CONTROL
Yes
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
