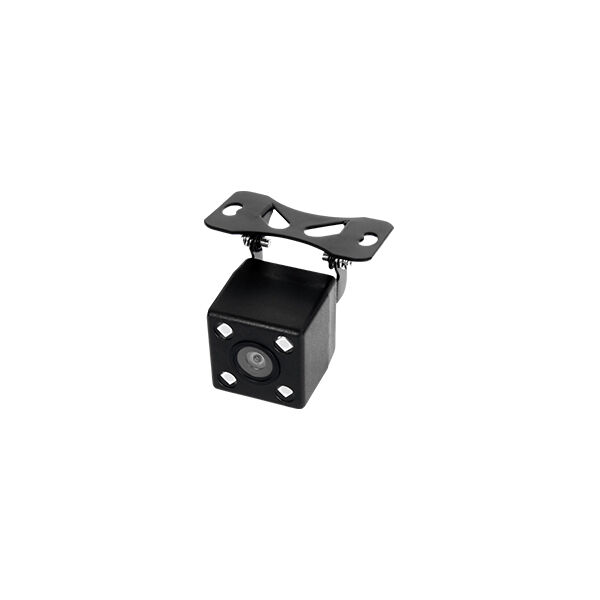

Axis Surface Mount Camera

The SD23 is a versatile 12/24v input and IP67 weatherproof rear-view camera. It connects easily with RCA input LCD monitors and features selectable parking guidelines, making reversing safer and easier.
Specifications:
Image Device: 1/3” CMOS
Diagonal Viewing Angle: 165 degree
Horizontal Viewing Angle: 120 degree
Signal System: PAL
Effective Pixels: 640 x 480
Resolution: 480 TV Lines
Compatibility: All Monitors with RCA Input
Lens: Full Glass
Orientation: Selectable Mirror/Non Mirror
Guidelines: Selectable On/Off
Night Vision: 0.2 Lux with 4 IR
Ingress Protection: IP67
Integrated Microphone: No
Operating Temp: -20 to 70 degreeCPower Consumption: 90-300mA
Connection: Mini 4 Pin Terminated RCA (M)
Lead: 8M
Dimensions: 23.4W x 23.4H x 25D mm (Excluding Bracket)
Power Supply: 9-32V DC
