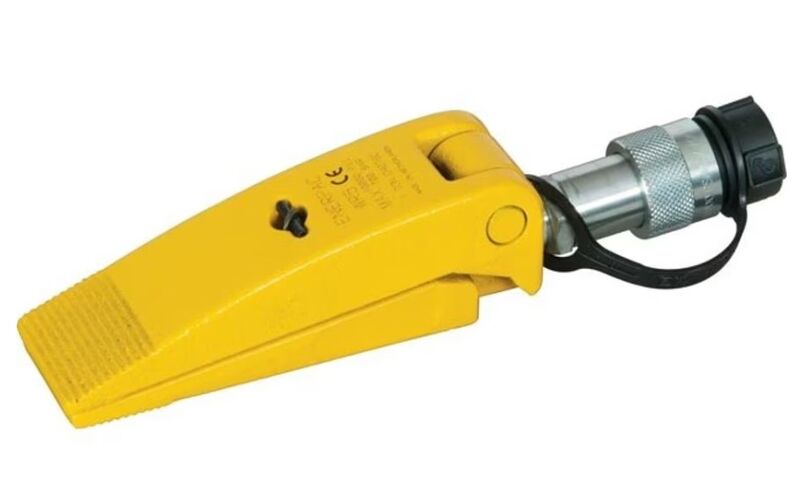

WR5 Hydraulic Wedgie and Spread Cylinder

When you need a compact hydraulic wedge spreader for tight spaces the WR5 is the optimum choice. This single-acting tool uses powerful hydraulic force to expand up to 3.7" (94mm) and retracts with a spring return system.
Specifications:
Maximum Operating Pressure (bar): 700
Maximum Spread (mm): 94
Power Source: Hydraulic
Maximum Spreading Force (kN): 8,9
Maximum Spreading Force (ton): 1
Stroke (mm): 8.9
Tip Clearance (mm): 12,8
Cylinder Effective Area (cm2): 6,5
Weight (kg): 2,3
